Flame detector




SINGLE TYPE1 (SENSOR & Monitor, Detachable)

BURNER FLAME INTENSITY & FREQUENCY Calculation
Perfect Flame Detect !

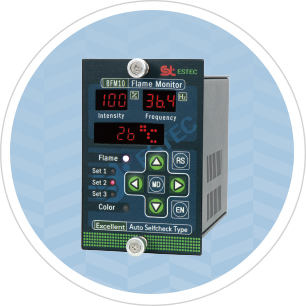

Flame Detector Monitor

Specification

  • MODEL

    BFM10M
  • POWER

    AC85~264V, 10W
  • INPUT

    1~3mA
  • OUTPUT

    FLAME(1a), FAULT(1a), 4~20mA
  • SIZE

    W88 × H136 × D150
  • USAGE

    -10~60℃, RH 85%

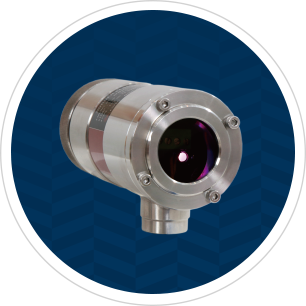

Flame Detector Sensor

Specification

  • MODEL

    BFM10S
  • POWER

    12VDC/1.5W
  • INPUT

    GAS, OIL, COAL FLAME
  • OUTPUT

    1~3mA
  • SIZE

    64ø × 180L, 3/4' HUB
  • USAGE

    -20~75℃, RH85%
  • Certi.

    Ex d IIC, T6 IP66

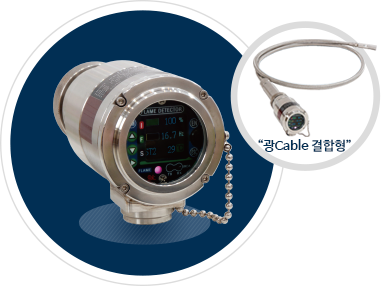

SINGLE TYPE2 (SENSOR & Monitor, Integrated)

Explosion Proof Panel in NOT Necessary!
High Sensitive flame detector!

Specification

  • MODEL

    BFM34S
  • POWER

    24VDC/2.5W
  • INPUT

    GAS(BFG, LDG, COG, LNG), Oil, Coal Flame
  • OUTPUT

    FLAME(1a), FAULT(1a), 4~20mA , RS485
  • SIZE

    80ø × 180L
  • USAGE

    -20~75℃ , RH 85%
  • Certi

    Ex d IIC, T6 IP66
